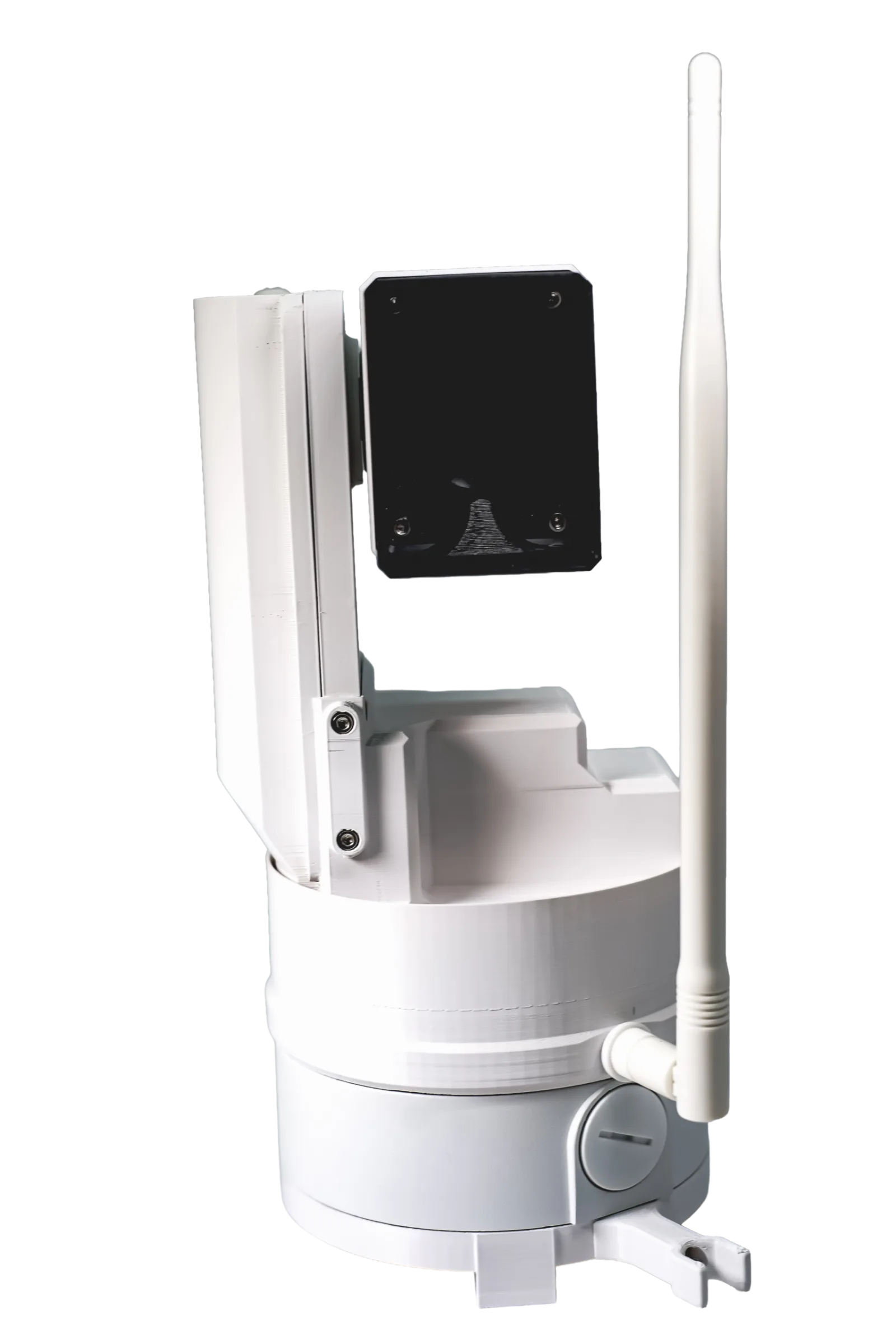

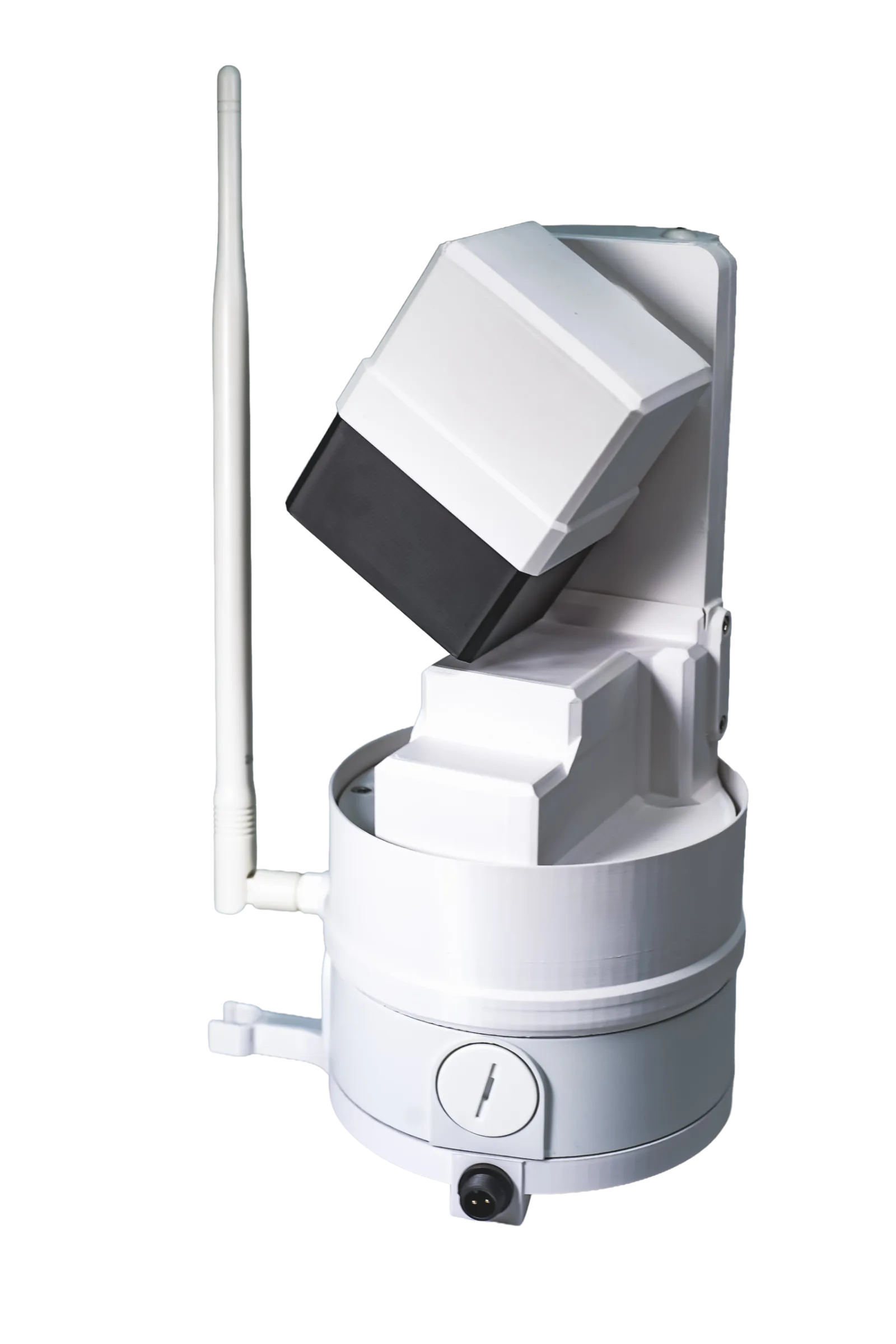

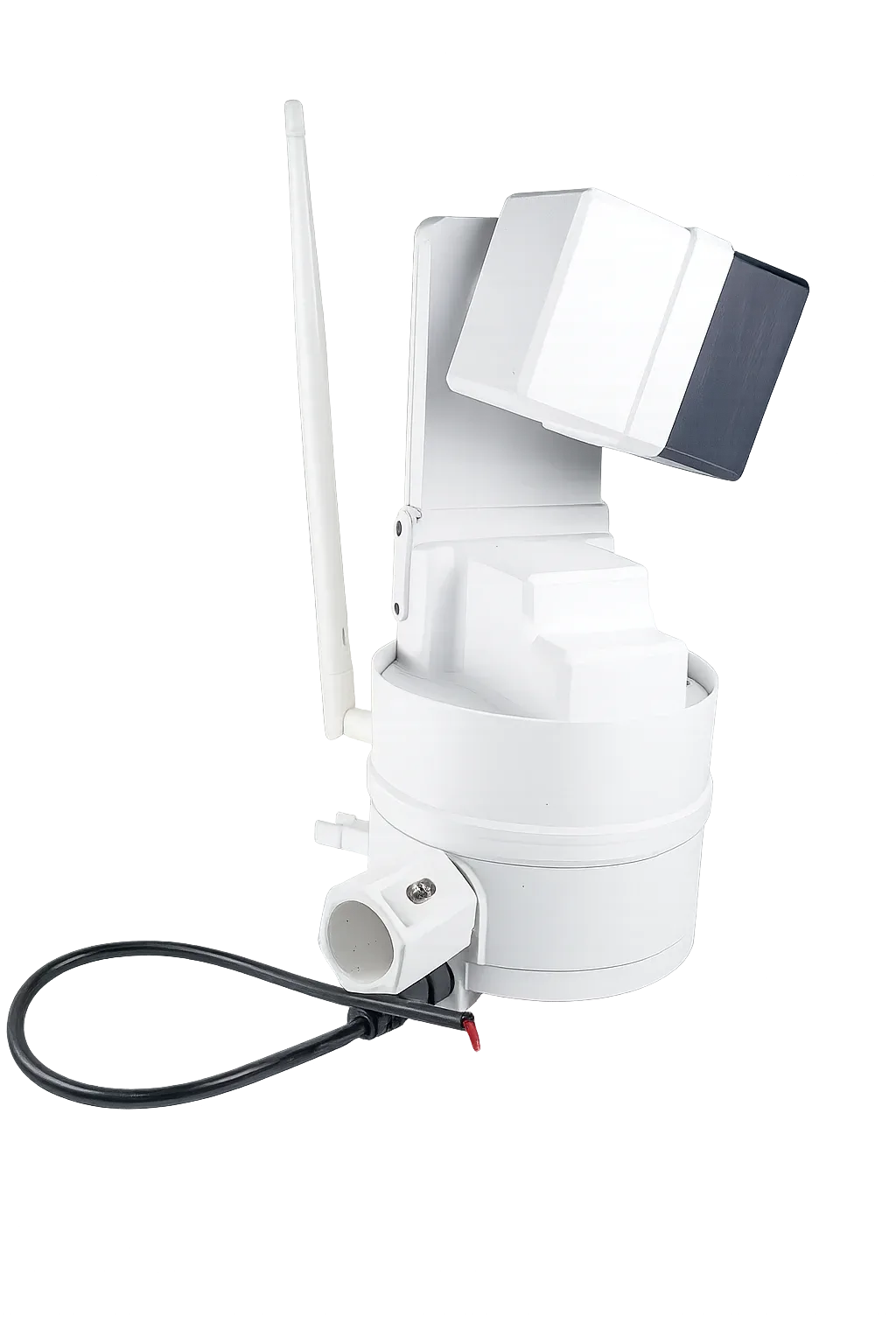

EOS2 LiDAR Scanner
LiDAR scanner for use with the Hyperion volume scanning system.
$2,750
In stock
- Pay by card at checkout, or request a quote and pay by invoice
- Shipping is calculated for your location and confirmed with your order.
- Prefer to lease? EOS2 leases start at $100 per scanner per month. Compare options
Product details

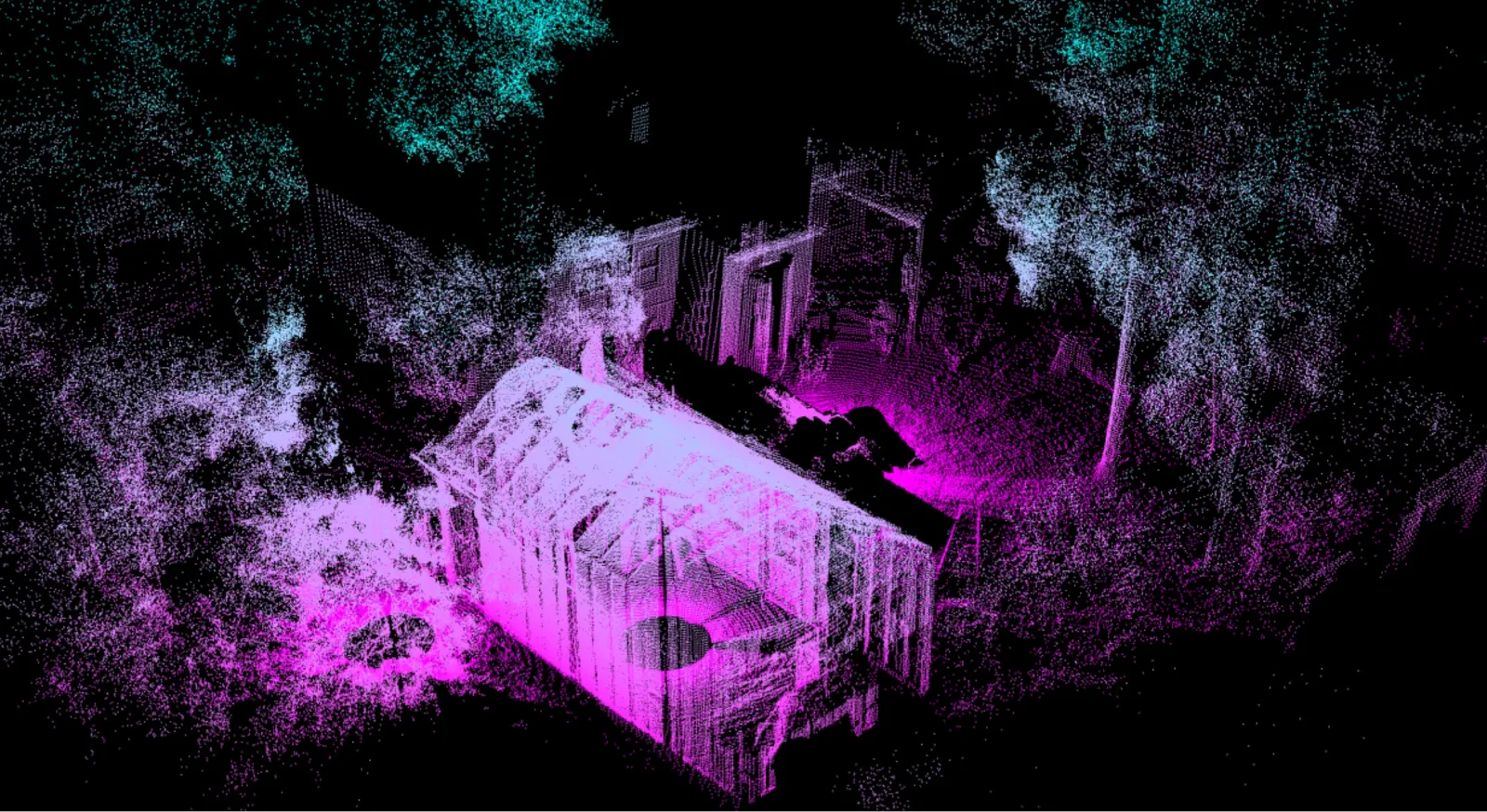

The EOS2 LiDAR sensor delivers powerful, high-resolution 3D scanning in a compact, cost-effective platform built for real-world use. Designed to make professional-grade LiDAR accessible, EOS2 turns raw environments into precise digital models with speed and reliability.

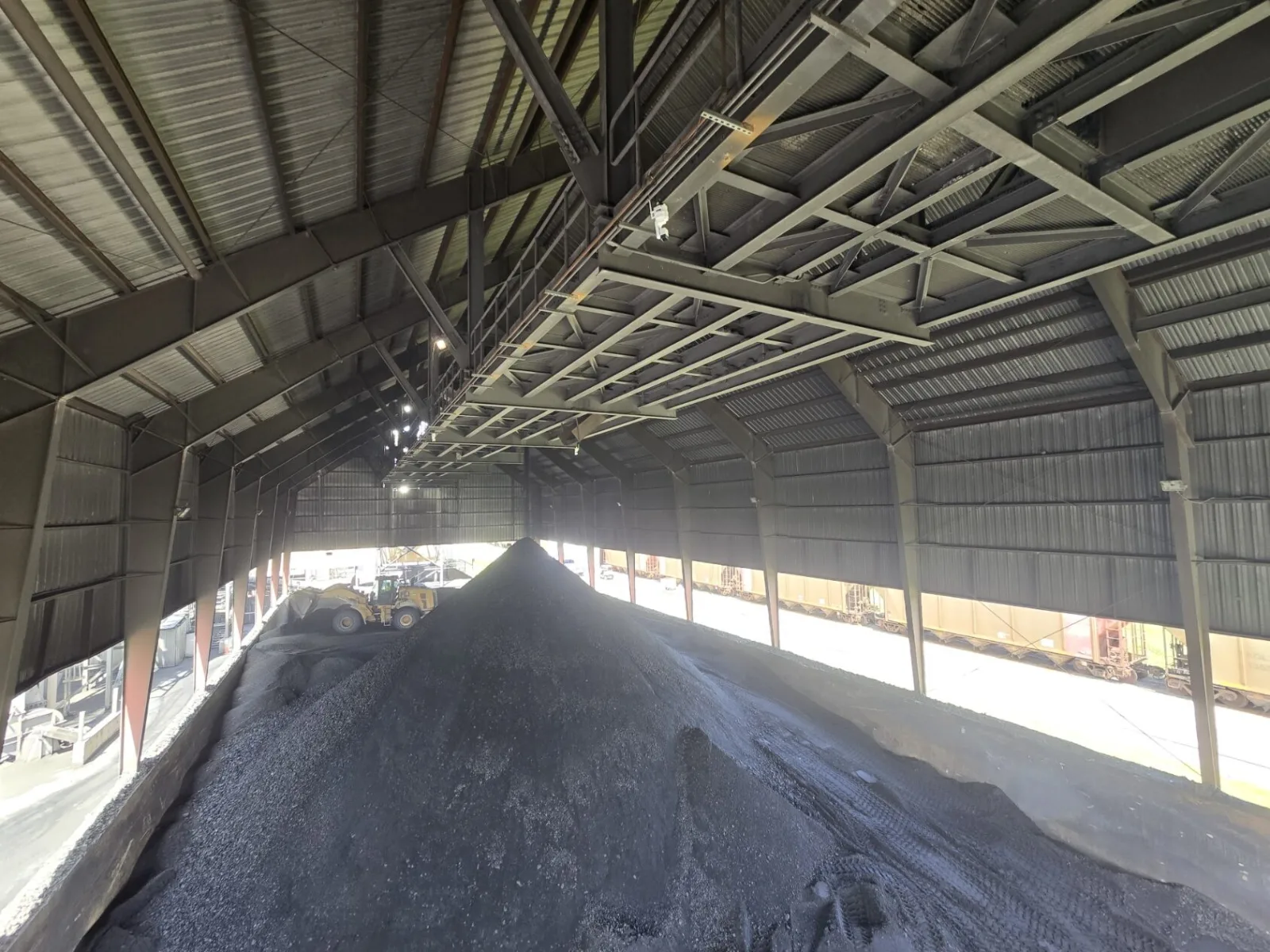

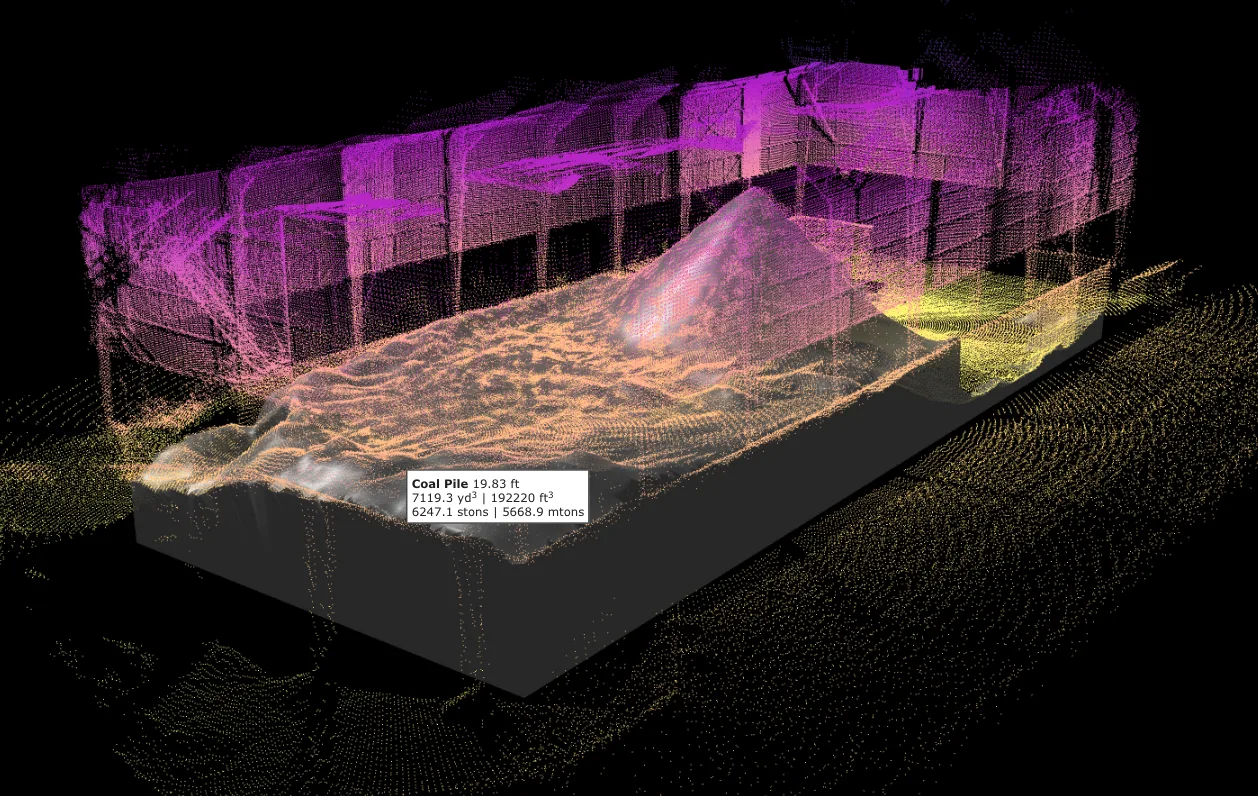

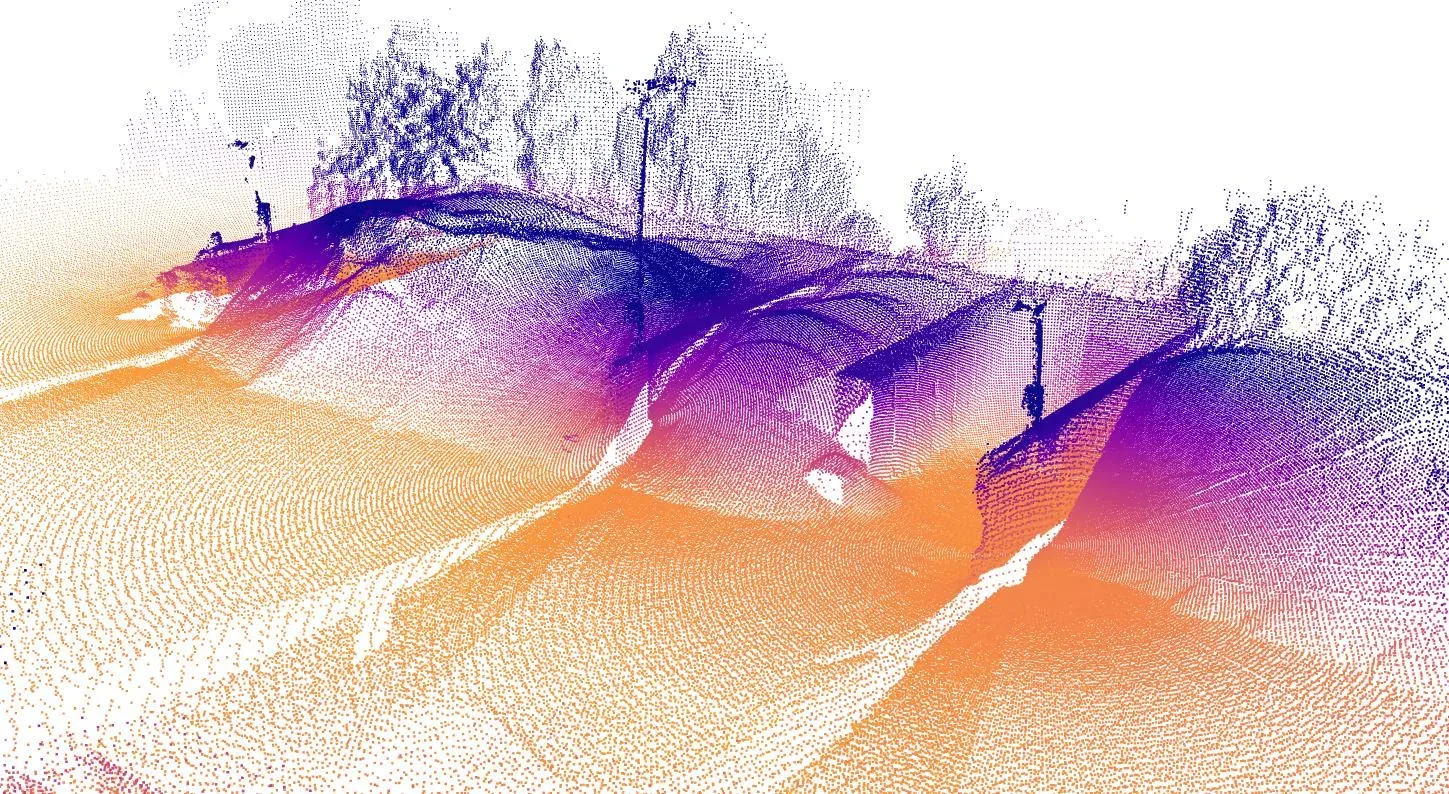

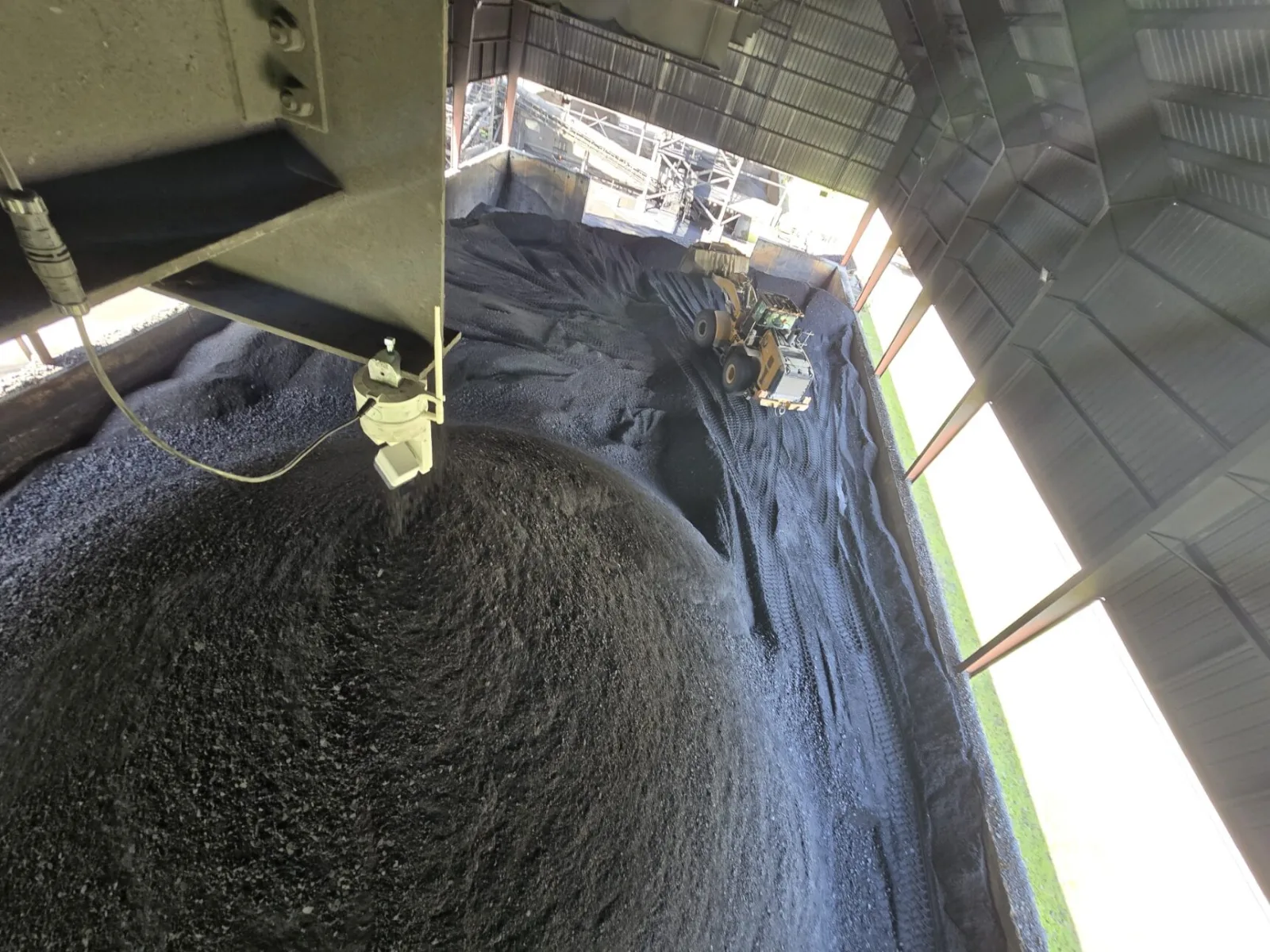

Paired with the Hyperion volume scanning system, EOS2 provides automated 3D data capture for accurate material measurement, mapping, and analysis. Once installed, the sensor can run on a schedule or with manual remote triggering, enabling consistent, repeatable results in demanding environments.

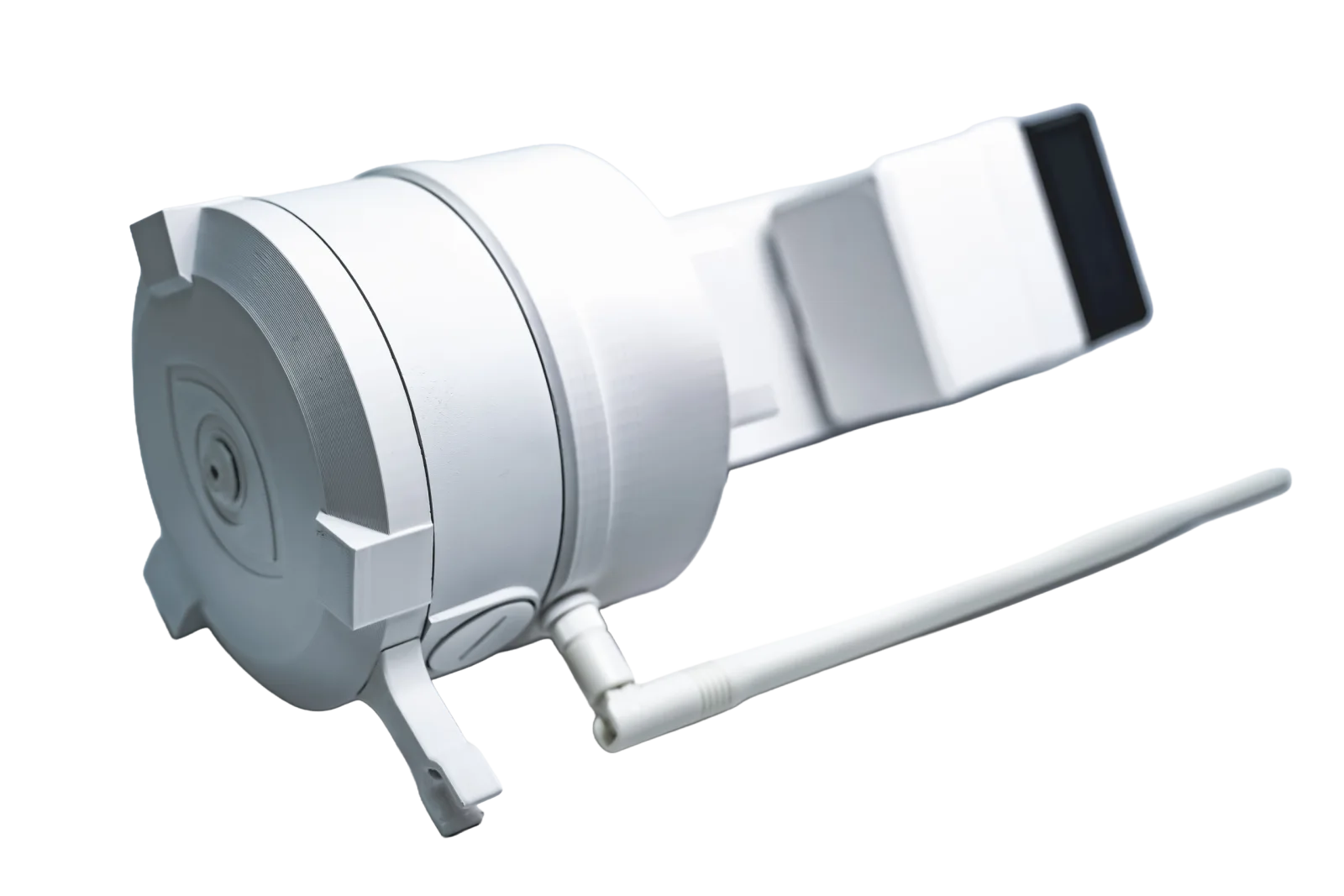

For installation flexibility, EOS includes an integrated NPT mounting adapter, allowing direct attachment to standard 3/4″ NPT hardware for fast, secure deployment across a wide range of mounting configurations.
This is LiDAR made practical. Stop imagining what’s possible and start mapping it.
Highlights
-
High-resolution 3D LiDAR sensor optimized for continuous operation
-
Designed for automated volume scanning and spatial measurement
-
Seamless integration with the Hyperion platform
-

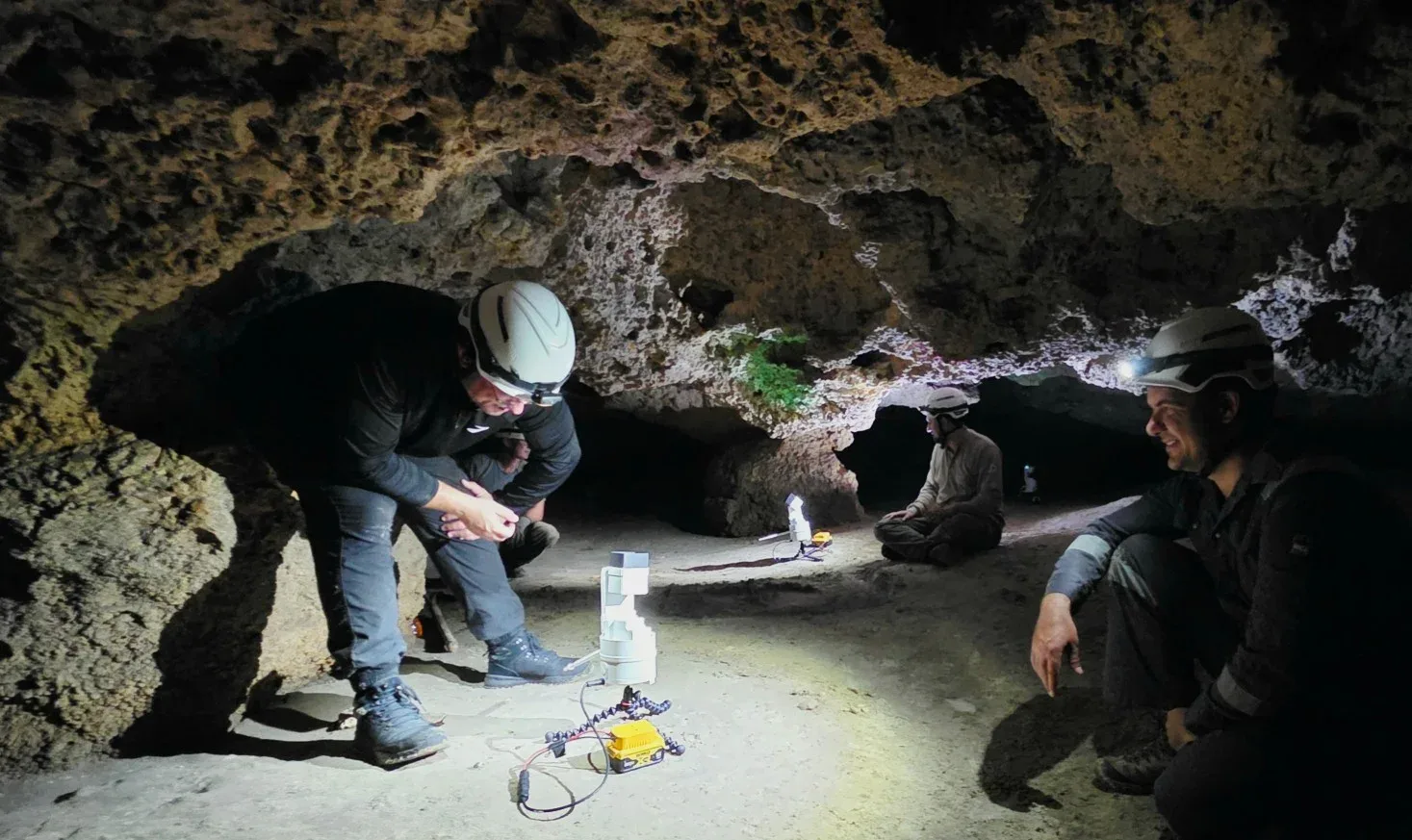

Compact, low-power, and field-proven for outdoor and industrial use
- Integrated 3/4″ NPT mounting adapter for simple, flexible installation
| Power | 12VDC | 2A peak, 500mA scanning, 25mA idle |
| Mounting | 3/4″ NPT; 1/4″-20 UNC (top) |
| Communication | 2.4 GHz WiFi, Bluetooth |
| Ingress Protection | IP54 |
| Angular Accuracy | 0.25° |
| Range-finder Accuracy | 1% |
| Scanner Range | 200 ft radius (400 ft across) |
Active data plan required for Hyperion connectivity and data processing
